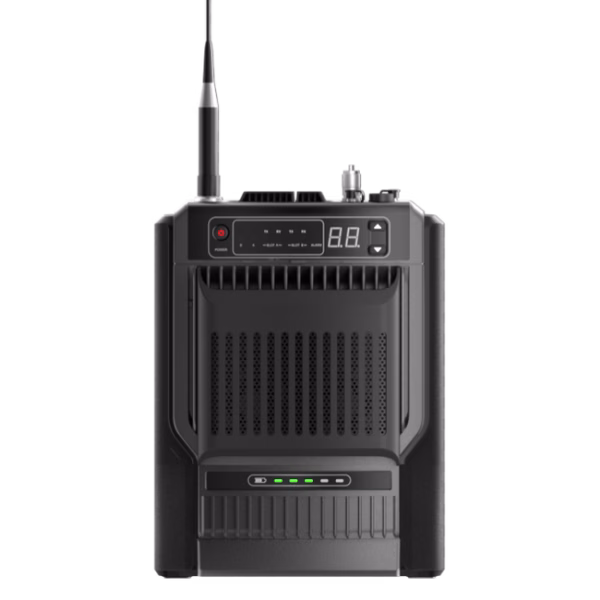

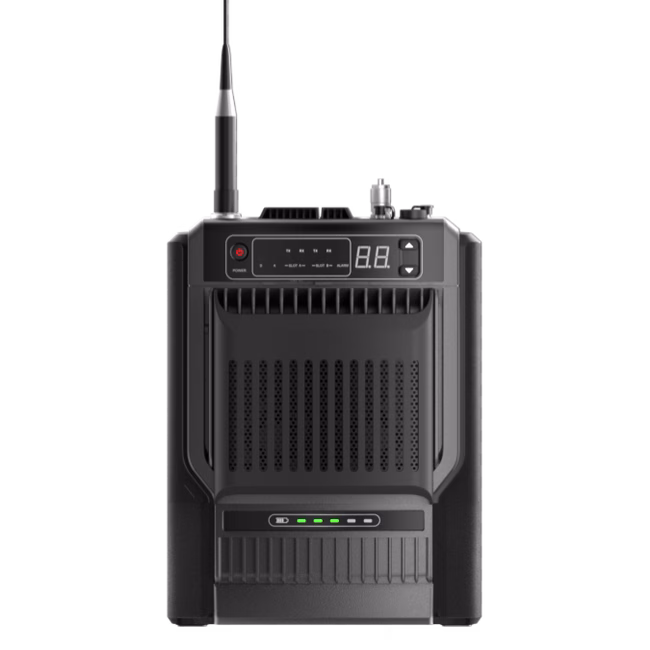

HR65X Repeater

Description

The Hytera HR65X DMR Repeater is a next-generation, high-efficiency digital base station and coverage extender engineered to eliminate dead zones across large facilities. Shifting away from bulky, traditional rack-mounted repeater cabinets, it packs high-power communication into an ultra-compact, lightweight frame that can be easily mounted directly to walls or ceilings. Supporting both conventional digital and legacy analog modes, it is widely used by corporate office campuses, high-rise luxury hotels, multi-tier logistics warehouses, and shopping malls to seamlessly amplify their team’s radio footprint.

Features

Flexible, Space-Saving Installation The compact, lightweight design provides flexible installation options, allowing the repeater to be mounted on walls, equipment structures or other suitable locations where space is limited, reducing the need for a traditional full-size equipment rack.
Analogue & Digital Mixed Mode Dynamic Mixed Mode automatically recognises incoming analogue or digital transmissions and repeats the corresponding signal type. This allows organisations to operate existing analogue radios alongside newer DMR digital equipment during a gradual migration to digital communications.
Automatic Battery Backup Integrated backup-power support allows the repeater to operate from a compatible external battery if the primary AC supply is interrupted, helping maintain communication during power outages and other disruptions.
IP Multi-Site Networking Multiple compatible repeaters can be interconnected over an IP network to extend radio coverage between different buildings, sites or geographic locations, providing coordinated communications across a wider operational area.
DMR TDMA Two-Slot Operation DMR TDMA technology divides a 12.5 kHz digital radio channel into two time slots, supporting two independent communication paths and improving available channel capacity and spectrum efficiency.
Remote Diagnostics & Management Compatible remote management and diagnostic tools allow authorised administrators to monitor repeater status and perform supported configuration and maintenance functions over an IP connection, reducing the need for routine on-site access.
Remote Configuration Supported remote-management functions can assist with system configuration, channel settings, operational monitoring and compatible firmware maintenance from a central management location.

Specifications

Transceiver & RF Performance
Frequency Bands Available in separate regional configurations: UHF 400–470 MHz or VHF 136–174 MHz.
RF Power Output Adjustable from 1 W to 25 W, with an efficient thermal design engineered to support continuous operation at maximum rated power.
Channel Capacity Up to 1,024 programmable memory channels.
Channel Spacing 12.5 kHz / 20 kHz / 25 kHz
Receiver Sensitivity 0.18 μV (Analogue) / 0.16 μV (Digital), providing high receiver sensitivity for reliable communication in weaker signal conditions.
Protocol Standard DMR Tier II conventional digital operation based on open DMR standards.
Power & Networking
AC Power Input 100–240 V AC via built-in power supply module.
DC Power Input 13.6 V DC (±15%), with support for compatible standby power and charging configurations.
Network Interface Dedicated RJ45 Ethernet interface supporting compatible IP networking, multi-site connectivity and remote system management applications.
Internal Duplexer Space Dedicated internal space accommodates a compatible compact duplexer, helping create a cleaner and more integrated repeater installation.
Mechanical & Environmental
Dimensions (H × W × D) 201 × 211 × 80 mm
Weight Approximately 2.0 kg
Ingress Protection IP54-rated for protection against limited dust ingress and water splashes from multiple directions.
Operating Temperature -30°C to +60°C
Cooling System Intelligent internal cooling fan automatically adjusts its operation according to system temperature, helping maintain stable performance during extended use.
