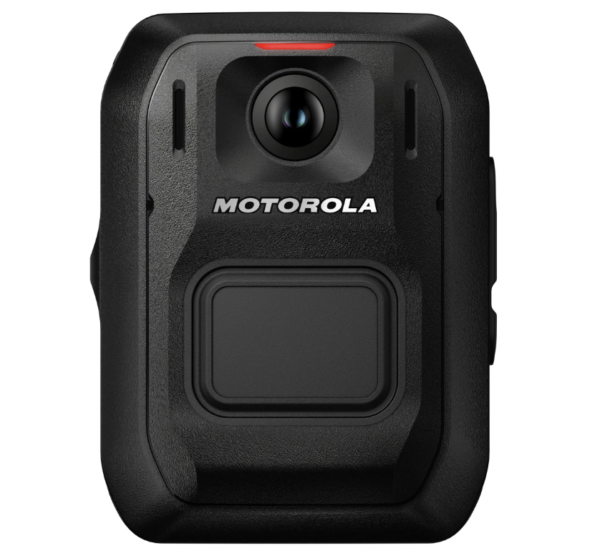

Motorola V500 Body-Worn Camera (BWC)

Home>Body Worn Cameras>Motorola V500 Body-Worn Camera (BWC)
Motorola VT500 body worn camera available from Diotron Communications

Description

The Motorola V500 is a premium, tactical LTE-enabled body-worn camera engineered for law enforcement, emergency services, and high-tier private security fleets. Building on the architectural foundation of the popular VB400, the V500 introduces standalone cellular connectivity to enable real-time live streaming and direct field-to-cloud evidence uploading without needing a smartphone or a fixed Wi-Fi station. It fully integrates into Motorola’s public safety ecosystem, linking bodycam footage with fixed CCTV streams and radio dispatch networks.

Features

Real-Time Cellular GoLive Streaming Supports real-time live video streaming over LTE, enabling authorised control-room operators and supervisors to access live footage from deployed cameras and improve situational awareness during active incidents.
Holster-Aware Sensor Triggers Compatible Bluetooth-enabled sensors can automatically trigger camera recording when configured equipment or holsters are activated, helping ensure critical incidents are captured without requiring the wearer to manually start recording.
Peer-Assisted Recording When one compatible V500 camera begins recording, nearby connected cameras can be automatically triggered to record as well, helping capture an incident from multiple perspectives and providing a more complete evidentiary record.
On-Demand Remote Offloading Critical footage can be uploaded from the field over LTE to a compatible Motorola Solutions evidence-management environment, allowing authorised personnel to access and review important video without waiting for the camera to return to a docking station.
Unified Fixed CCTV Integration Integrates with compatible Motorola Solutions video-management systems, allowing live V500 body-worn camera feeds to be viewed alongside existing fixed CCTV cameras within a unified control-room environment.

Specifications

Video & Optics
Recording Resolutions 1080p Full HD (1920 × 1080), 720p HD (1280 × 720) and 360p (640 × 360)
Frame Rate Selectable 25 or 30 frames per second (fps)
Lens Field of View 130° horizontal, 71° vertical and 150° diagonal wide-angle coverage
Low-Light Performance High-sensitivity image sensor designed to capture usable video in low-light conditions down to 0.1 lux.
Pre- & Post-Incident Buffering Configurable background video buffering of up to 2 minutes helps capture important footage from before recording is manually activated.
Audio, Interface & Notifications
Microphone Array Three integrated high-fidelity microphones with Acoustic Echo Cancellation (AEC) to help reduce echo and improve audio clarity in challenging environments.
Audio-Only Mode Dedicated Audio-Only mode enables standalone audio recording for applications where video capture may not be required or appropriate.
Device Status Display Top-panel backlit LCD display designed to provide clear device status information, including visibility in bright outdoor conditions.
Alert & Status Indicators Configurable vibration feedback, front and top LED indicators, and audible tones provide clear operational and device-status notifications.
Physical Controls Large front-panel recording button, two top buttons, three side buttons, a two-position toggle control and dedicated power switch.
Storage, Connectivity & Security
Internal Storage 128 GB solid-state internal memory
Cellular Connectivity Built-in standalone LTE connectivity using a secure eSIM profile for compatible mobile network connectivity.
Wireless Connectivity Dual-band Wi-Fi and Bluetooth connectivity for compatible wireless communications, accessories and device-management applications.
GPS & Geotagging Integrated GPS provides location information that can be associated with recorded events, supporting accurate incident location tracking and evidence context.
Data Encryption AES-256 encryption helps protect recorded data stored on the camera and supports secure transmission of compatible data over connected networks.
Power & Mechanical
Continuous Recording Runtime Up to 12 hours of operation on a single charge, supporting extended-shift use.
Recharge Time Less than 4 hours using compatible desktop charging docks or USB Type-C charging.
Dimensions 95.5 × 74 × 26.5 mm
Weight 205 g (7.2 oz)
Ingress Protection IP67-rated for protection against dust ingress and temporary water immersion.
Ruggedness Designed and tested to MIL-STD-810H standards for durability in demanding professional environments.
Operating Temperature -20°C to +50°C (-4°F to +122°F)

Brochure

Motorola vt500

Video

Motorola V500 Body Camera
