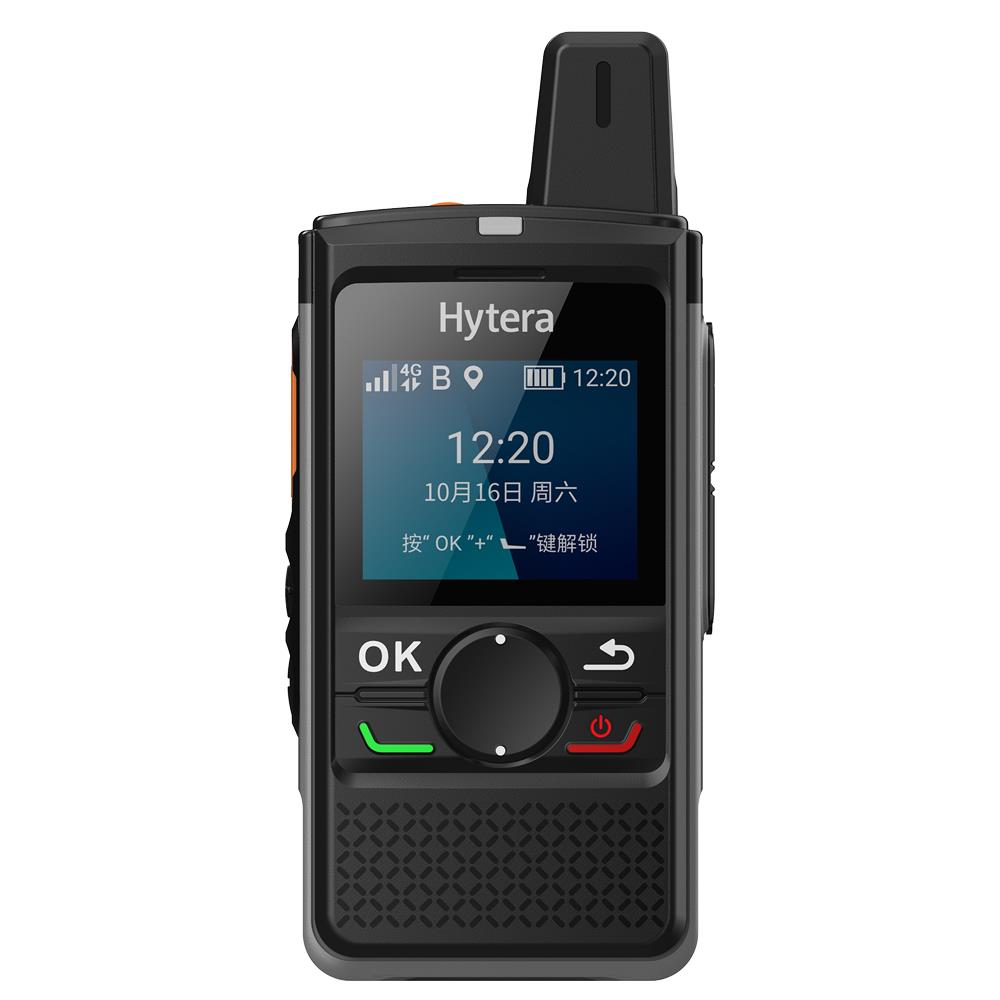

Hytera PNC360S Push-to-Talk over Cellular (PoC) radio

Description

The Hytera PNC360S Push-to-Talk over Cellular (PoC) radio is a compact, rugged communication device that delivers instant, wide-area connectivity over 4G/LTE, 3G, and Wi-Fi networks. Unlike traditional two-way radios with limited range, the PNC360S enables teams to communicate seamlessly anywhere with network access. Perfect for industries such as logistics, security, retail, and hospitality, the Hytera PNC360S enhances workforce coordination, improves response times, and ensures reliable, real-time communication across large areas.

Highlights

Key features

  • Wide coverage: The PNC360S uses a Micro-SIM card to provide instant communication across cities, countries, and even continents, overcoming the range limitations of traditional radios. It also supports Wi-Fi for communication when inside a building and seamlessly switches between cellular networks when outdoors.
  • Superior audio: A 3W built-in speaker and dual-microphone noise suppression ensure loud and clear audio, even in noisy environments. Hytera’s patented distortion suppression and howling suppression technologies further boost audio clarity.
  • Reliable and durable: The radio is certified with an IP67 rating for waterproof and dust-tight protection. It also meets the stringent MIL-STD-810H standard, confirming its resilience to shock, vibration, and extreme temperatures. It can withstand drops of up to 1.2 meters.
  • Extended battery life: A 4,000 mAh lithium-ion polymer battery provides long-lasting power, with some estimates indicating it can last for an entire shift on a single charge. The radio also supports fast charging via its USB Type-C port.
  • Enhanced positioning: The built-in multi-system GNSS (GPS, BeiDou, GLONASS, and Galileo) ensures precise and accurate location tracking, which is useful for dispatching and fleet management.
  • Compact and portable: Measuring 104 x 54.6 x 26.5 mm and weighing about 190g, the PNC360S is easy to carry and operate with one hand. Its ergonomic design and anti-slip texture reduce accidental drops.
  • Emergency features: An SOS emergency button is included for critical situations. A dispatcher can also remotely manage a lost or stolen device via the “stun” and “revive” features.
  • Bluetooth and Wi-Fi: Built-in Bluetooth enables connectivity with wireless audio accessories for hands-free operation. Wi-Fi allows for communication and data transfer.

Features

SMOOTHER COMMUNICATION

Thanks to the exterior antenna design, the radio RX sensitivity is improved by 2 dB. This makes you enjoy smoother communication even in areas with weak signal such as suburb, indoor, or underground.

BEST-IN-CLASS AUDIO

The PNC360S provides loud and clear audio even in noisy environments. The 3.0-watt built-in speaker ensures speech loudness, and the distortion suppression and noise cancellation technologies are adopted to boost the audio clarity. With the howling suppression algorithm, no feedback howling occurs between two radios within 3 meters.

LONGER-LASTING BATTERY

The PNC360S comes with a 4,000 mAh battery that provides power for an entire shift easily on a single charge. The fast charging gives you hours of power in minutes of charge.

PRECISE POSITIONING

With various combination of GPS, BDS, GLONASS, and Galileo and higher-precision positioning module, the radio can be located faster and more precise for efficient dispatch.

RELIABLE AND DURABLE

Certified with IP67 rating and MIL-STD-810H standard, the PNC360S is made tough to withstand water, dust, shock, extreme temperatures, and sudden drop up to 1.2 meters. It always performs as expected in any harsh environments.

COMPACT AND PORTABLE

With 26.5 mm thickness, the PNC360S is compact and superbly portable. It fits comfortably in your palm or pocket. The enhanced ergonomic design, especially the one-sided key layout, makes the radio easier to use with one hand. And the anti-slip texture surface can reduce accidental drops even in moist conditions.

Specifications

Technical Specifications

General

Dimensions (H x W x D)
104mm*54.6mm*26.5mm
Weight
About 190g (including back clip)
Memory
1GB RAM+8GB ROM
Non-touch Screen Size
1.77 inches
SIM Card
1 Nano-SIM
BT
BT4.1
WIFI
2.4GHz, 802.11 b/g/n
Positioning
GPS/BeiDou/Glonass/Galileo/AGPS
Battery
4,000 mAh, detachable
Speaker Power
2 W (rated), 3 W (max)

Environmental

Storage Temperature
-30°C to +70°C
Operating Temperature
-20°C to +60°C
Ingress Protection
IP67
Certification
MIL-STD-810H,CE,FCC

Frequency

European & Asian Areas
GSM: 850/900/1800/1900
CDMA: BC0
WCDMA: B1/B3/B5/B8
TD-SCDMA: B34/B39
LTE TDD: B38/B39/B40/B41
LTE-FDD: B1/B3/B5/B7/B8/B20/B26/B28

Brochure

PNC360S-Brochure
