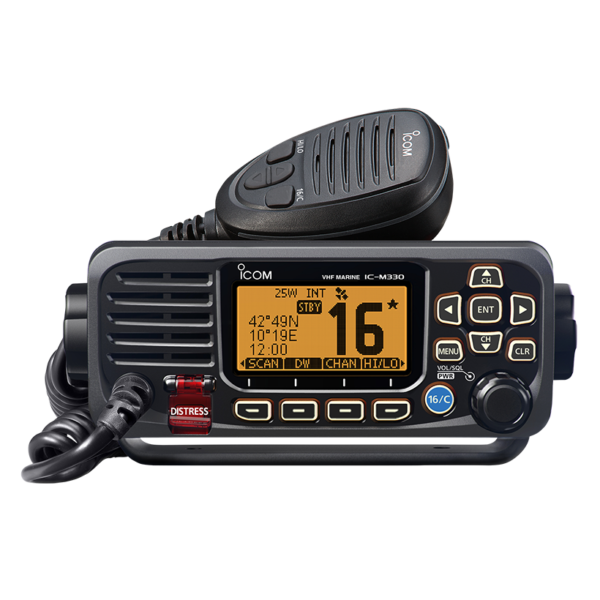

Icom IC-M330GE

Description

The Icom IC-M330GE redefines helm communications by packaging full Class D Digital Selective Calling (DSC) infrastructure into a chassis that fits into the palm of your hand. Measuring a mere 156.5 mm in width and 66.5 mm in height, its ultra-compact footprint allows it to be flush-mounted easily into crowded dashboards, overhead consoles, or small center consoles where panel space is at a premium.

Featuring a completely redesigned user interface centered around a high-contrast dot-matrix display, soft keys, and a directional pad, it provides highly intuitive operation under rough sea conditions. Backed by a full 25 watts of transmit power and an integrated GPS engine, the IC-M330GE ensures your vessel remains securely connected to nearby mariners, ports, and coastal emergency response networks.

Features

KEY MARINE & SAFETY FEATURES
Integrated GPS Receiver Built-in GPS receiver provides vessel position, date and time information for navigation and emergency communications. The GE variant includes an external GPS antenna with a connecting cable to improve satellite reception where the radio is installed in a location with limited GPS signal coverage.
Class D Digital Selective Calling (DSC) Integrated Class D DSC functionality includes a dedicated receiver for continuous monitoring of Channel 70. A protected distress button enables the transmission of a digital distress alert containing vessel identification and available GPS position information to compatible DSC receiving stations.
Intuitive Marine User Interface High-contrast dot-matrix LCD with white backlighting, directional keypad and programmable soft keys provides convenient access to channel selection, GPS information, DSC functions and operating settings.
AquaQuake™ Water Draining Icom’s AquaQuake water draining function generates a low-frequency vibration through the speaker to help expel water trapped in the speaker grille, improving audio clarity after exposure to rain, spray or splashing water.
High-Sensitivity Receiver Sensitive receiver design, with a stated typical sensitivity of 0.22 μV at 12 dB SINAD, supports reliable reception of weaker marine VHF signals under suitable operating conditions.
Multiple Scanning & Watch Modes Supports Priority Scan, Memory Scan, Dualwatch and Tri-watch functions. Allows operators to monitor selected working channels while maintaining awareness of activity on emergency and calling Channel 16.

Specifications

TECHNICAL SPECIFICATIONS
Frequency Coverage Transmit: 156.025–161.425 MHz
Receive: 156.050–163.275 MHz
DSC Channel 70: 156.525 MHz
Marine Channel Groups International, USA and Canadian marine VHF channel groups
RF Transmit Power High: 25 W
Low: 1 W
Selectable power settings
Digital Selective Calling Class D DSC
ITU-R M.493-14
Dedicated Channel 70 receiver
Display High-contrast full dot-matrix LCD
Adjustable white backlighting
Waterproof Protection IPX7-rated water ingress protection
Temporary immersion up to 1 metre for 30 minutes under specified test conditions
Audio Output 4.5 W front-facing internal loudspeaker
Operating Voltage 13.8 V DC nominal
Operating range: 10.8–15.6 V DC
Current Consumption Transmit at 25 W: 5.0 A maximum
Receive at maximum audio: 1.0 A
GPS & Data Interface Integrated GPS receiver
NMEA 0183 input/output for compatible marine navigation equipment
External GPS antenna supplied with the GE variant
Antenna Impedance & Connector 50 Ω unbalanced
SO-239 antenna connector
Dimensions (W × H × D) 156.5 × 66.5 × 110.1 mm
Approximately 6.16 × 2.62 × 4.33 inches
Device Weight Approximately 730 g (1.6 lb)
