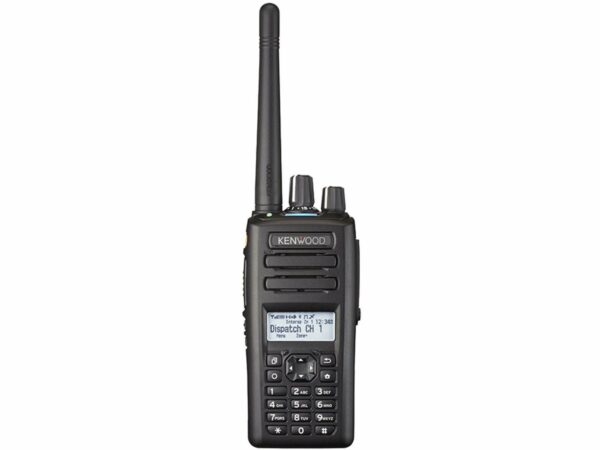

Kenwood NX-3220E VHF Digital Two-Way Radio

Description

The Kenwood NX-3220E is a professional-grade portable two-way VHF radio designed for reliable and versatile communication across a variety of industries. Part of the NX-3000 series, the NX-3220E supports multi-protocol operation, including DMR and NXDN digital modes as well as conventional FM analog communication, making it ideal for organizations transitioning from analog to digital systems at their own pace.

Built for durability and clarity, the NX-3220E delivers high-quality audio and robust performance in demanding environments. Its flexible multi-protocol capabilities allow businesses to maximize existing infrastructure while preparing for digital communication upgrades.

Key Features:

Professional VHF portable radio for reliable communication
Multi-protocol support: DMR, NXDN, and analog FM
Ideal for gradual transition from analog to digital systems
Clear, loud audio suitable for noisy environments
Rugged, durable design for demanding operational use

Perfect for:

Businesses and teams that require flexible, reliable communication and want a future-ready radio solution without immediately overhauling existing analog systems.

Why Choose the Kenwood NX-3220E:

The NX-3220E combines multi-protocol flexibility, professional-grade durability, and clear audio, providing a scalable solution for modern VHF communication needs.

Features

Multi-protocol digital radio – designed to operate under an NXDN or DMR digital, and FM analogue protocols

NXDN Conventional and Type-C & Gen2 Trunking

DMR Tier II, DMR Auto Slot Select & Site Roaming
DMR Tier III Trunking (requires KWD-3302TR license)

Mixed Digital & FM Analogue Operation allows gradual migration at your own pace

7-color Light Bar Indicator on the top panel

Built-in GPS Receiver/Antenna for effective fleet management

Built-in Bluetooth for hands-free communication – Applicable Bluetooth profiles: HSP (Headset Profile provided) and SPP (Serial Profile – available as an option)

Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP

Software DES and AES Encryptions for NXDN Conventional/Trunking and DMR Conventional protocols

Built-in Motion Sensor (Man-down, Stationary and Motion Detection)

IP54/55/67 and MIL-STD-810 C/D/E/F/G

4-Line Basic Frame (2-Line Main/Sub-LCD, icon & key guide) / 14 Characters

5-Line Text Message Frame (3 Lines of Text, icon & key guide)

4-way Directional-pad (D-pad) for intuitive control and operation

Specifications

Belt Clip	Yes
Instruction Manual	Yes
Screw Set	Yes

PMR General Features:

Multi-coloured LED	Yes
2-Tone Signalling	Yes
5-Tone Signalling (multi-format)	Yes
Battery Saver Mode	Yes
Battery Status Indicator	Yes
Bluetooth Module Built-in	Yes
Busy Channel Lock-out	Yes
Calling Alert	Yes
Character Display (Alphanumeric)	Yes
Compact Design	Yes
Data Mode Operation
Digital ANI Built-in	Yes
DTMF Function	Yes
Ease of Operating Use	Yes
Embedded Message	Yes
Emergency Call Function	Yes
Emergency Key	Yes
Emergency Advanced Motion Detection Function	Yes
Enhanced Kenwood Audio	Yes
Flash Upgradeable Firmware	Yes
FleetSync	Yes
GPS Built-In	Yes
GPS Compatible	Yes
Illuminated Keys	Yes
Kenwood ESN (Electronic Serial Number)	Yes
Key Beep On/Off	Yes
Key Lock	Yes
Front-panel Control Keys	Yes
Front-panel Keypad	Yes
LCD Display	Yes
Lone Worker Function	Yes
LTR Trunking	Yes
MDC-1200	Yes
Minimum-Volume Setting	Yes
Man-Down Function	Yes
Monitor Button	Yes
Multiple Scanning Function	Yes
Operator Selectable Tone	Yes
PC Programming & Tuning	Yes
Power-On Message	Yes
Programmable Function Keys	23 Programmable Function Keys
PTT ID	Yes
QT (CTCSS) / DQT (digital)	Yes
Real Time Clock	Yes
RSSI Level Indicator	Yes
Selectable Microphone Gain	Yes
Switchable Display Backlighting	Yes
Talk Around	Yes
“Talk Back” Scanning Function	Yes
Time-Out Timer	Yes
Transceiver Password	Yes
Voice Inversion Scrambler	Yes
Windows PC Programming and Tuning	Yes

NEXEDGE Features:

Full details of all the NEXEDGE features available from your Kenwood dealer	Yes
All Group Call	Yes
AMBE+2 Vocoder	Yes
Broadcast Call (Trunking Mode)	Yes
Emergency Call	Yes
Fail Soft Mode	Yes
Group Call (Trunking Mode)	Yes
Individual Private Call (Trunking Mode)	Yes
Individual Call	Yes
Message Trunked Mode	Yes
NXDN Conventional Included	Yes
NXDN Digital 12.5/6.25kHz Channel Spacing	Yes
NXDN Scrambler Included	Yes
Over-the-air Alias	Yes
Paging Call	Yes
Priority Monitor IDs	Yes
Radio Access Numbers (RAN)	Yes
Remote Group Add (Trunking Mode)	Yes
Remote Monitoring	Yes
Remote Stun/Kill	Yes
Short & Long Data Messages	Yes
Status Messaging	Yes
Transmission Trunked Mode	Yes
Zones	128

DMR Features:

AMBE+2 Vocoder	Yes
Direct Mode (P2P)	Yes
DMR Tier II	Yes
DMR Tier III	Yes, – Optional
DMR Site Roaming	Yes
DMR Auto Slot Select	Yes
Individual Call with Acknowledgement	Yes
Single-slot Data Timing	Yes
TDMA 2-slot System Architecture	Yes

Options:

Choice of Optional Battery Packs	Yes
Choice of Optional Microphones	Yes
Internal Encryption Board	Yes

Applicable Standards:

For use in the EU	Yes
IP54	Yes
IP55	Yes
IP67	Yes
MIL-STD 810 C/D/E/F/G	Yes

Technical Specifications:

Frequency Range	136 – 174 MHz
Number of Channels	260
Number of Zones	128
Channel Spacing – Analogue – Wide/Mid/Narrow	25 kHz/20 kHz/12.5 kHz
Modulation Limiting – Analogue	± 5.0 kHz at 25 kHz ± 4.0 kHz at 20 kHz ± 2.5 kHz at 12.5 kHz
Channel Spacing – Digital – Wide/Narrow	12.5 kHz/6.25 kHz
Battery Life	With KNB-55L: ± 8 h (FDMA) / ± 9.5 h (TDMA) With KNB-56N: ± 8 h (FDMA) / ± 9.0 h (TDMA) With KNB-57L: ± 11 h (FDMA) / ± 13.5 h (TDMA) – 5-5-90 –
Frequency Stability	± 2 ppm (-30 °C to + 60 °C)
Operating Temperature Range	-30 °C to + 60 °C
Operating Voltage	7.5 V DC ± 20%
Dimensions	With KNB-55L: 56.0 x 119.6 x 36.4 mm With KNB-56N: 56.0 x 119.6 x 42.7 mm With KNB-57L: 56.0 x 119.6 x 39.0 mm Radio only: 56.0 x 119.6 x 36.4 mm- Projections not included –
Weight (net)	With KNB-55L: 315 g With KNB-56N: 410 g With KNB-57L: 340 g Radio only: 220 g

Receiver Specifications:

Audio Output	3% Distortion: 500 mW / 8 Ohms 5% Distortion: 1000 mW / 8 Ohms – Internal Speaker –
Intermodulation	65 dB
Selectivity (Analogue)	12.5 kHz: 68 dB 20 kHz: 74 dB 25 kHz: 76 dB
Sensitivity (Analogue) – EIA 12 dB SINAD	0.25 µV (12.5/20/25 kHz)
Sensitivity (Analogue) – EN 20 dB SINAD	12.5 kHz: -1 db µV (0.45 µV) 20 kHz: -3 db µV (0.35 µV) 25 kHz: -3 db µV (0.35 µV)
Sensitivity (Digital)	NXDN: 12.5 kHz = 0.25 µV at 3% BER NXDN: 6.25 kHz = 0.20 µV at 3% BER NXDN: 12.5 kHz = -1 dB µV (0.45 µV) at 1% BER NXDN: 6.25 kHz = -4 dB µV (0.32 µV) at 1% BER DMR: 12.5 kHz = -4.5 dB µV (0.30 µV) at 5% BER DMR: 12.5 kHz = -1 dB µV (0.45 µV) at 1% BER
Spurious Response Rejection	65 dB

Transmitter Specifications:

RF Power Output	5 W / 4 W / 1 W
Audio Distortion	3 %
FM Hum & Noise	Analog @ 25 kHz: 45 dB Analog @ 20 kHz: 45 dB Analog @ 12.5 kHz: 40 dB
Spurious Emission (EN)	-36 dBm ≤ 1 Ghz -30 dBm > 1 Ghz
