Kirisun PT3600 Analogue Portable

Home>Two-Way Radios>Kirisun PT3600 Analogue Portable

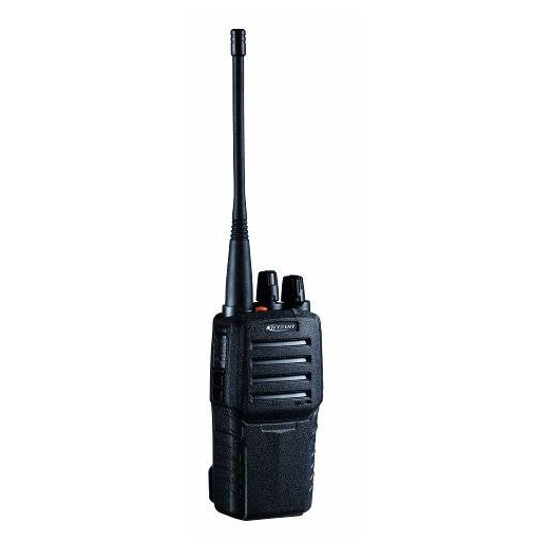

Kirisun PT3600

Description

The Kirisun PT3600 combines an ergonomic, easy-to-carry form factor with rugged industrial durability. Designed with a larger internal acoustic cavity and a unique double-protection speaker structure, it pumps out highly optimized audio that cuts through heavy workplace background noise with maximum clarity. Operating across switchable high and low power settings, this transceiver provides a robust point-to-point communication range of 3 to 5 kilometres depending on surrounding terrain. Backed by an IP54 weather rating and standard military testing benchmarks, it offers dependable shifts across harsh environments

Features

FEATURES
Acoustic Audio Cavity Design Combines advanced Digital Signal Processing (DSP) voice tuning with an optimised, double-layered speaker cavity to deliver clear, crisp communication with up to 1000 mW (1 W) of audio output power.
Voice Guide & Channel Annunciation Provides audible channel announcements, allowing users to confirm channel selections and operating status without needing to look at the radio.
PTT ID via DTMF Signalling Supports Push-To-Talk (PTT) identification using DTMF signalling, enabling the transmission of a unique radio identification code to compatible dispatch systems or repeater infrastructure.
VOX Hands-Free Operation Supports Voice-Activated Transmission (VOX), allowing hands-free communication through compatible earpieces or microphones without manually pressing the PTT button.
Integrated Emergency System Features a dedicated orange emergency button that can activate a local audible alarm or transmit an emergency alert to compatible radios, depending on system configuration.
Flexible Interface Programming Configurable using PC programming software, with support for password protection, Busy Channel Lockout (BCLO), Time-Out Timer (TOT) settings and wired radio cloning to simplify fleet management.

Specifications

TECHNICAL SPECIFICATIONS
Frequency Bands VHF: 136–174 MHz
UHF: 400–470 MHz
Optional Variants: 330–390 MHz / 450–520 MHz
Channel Capacity 16 channels, selectable via a heavy-duty mechanical rotary knob
RF Output Power VHF: 5 W / 1 W
UHF: 4 W / 1 W
Selectable high/low power settings
Channel Spacing 12.5 kHz (narrowband) / 25 kHz (wideband), switchable
Privacy Codes 50 CTCSS groups and 104 DQT/DCS groups for selective signalling
Standard Battery 1300 mAh Lithium-Ion battery pack (Model: KB-31A)
Battery Life Up to 14 hours of operating time with battery-saving features enabled (usage dependent)
Environmental Protection IP54 certified – dust-protected and resistant to water splashes from all directions
Durability Benchmarks Evaluated against MIL-STD-810 C/D/E environmental and durability guidelines
Audio Accessories Port Kenwood-style 2-pin accessory connector for compatible audio accessories
Dimensions (H × W × D) 127 × 59 × 38 mm (excluding antenna)
Device Weight 225 g (with standard battery and antenna)

Brochure

Brochure-PT3600-brochure-V1-0

Accessories

  • Belt Clips & Holsters: Hands-free carrying and accessibility

  • Speaker Microphones: Remote audio for convenient communication

  • High-Capacity Batteries: Extended operating time

  • Multi-Unit Chargers (MUCs): Charge multiple radios simultaneously

  • Headsets & Earpieces: Covert or noise-cancelling options

Request Quote
Kirisun PT3600
