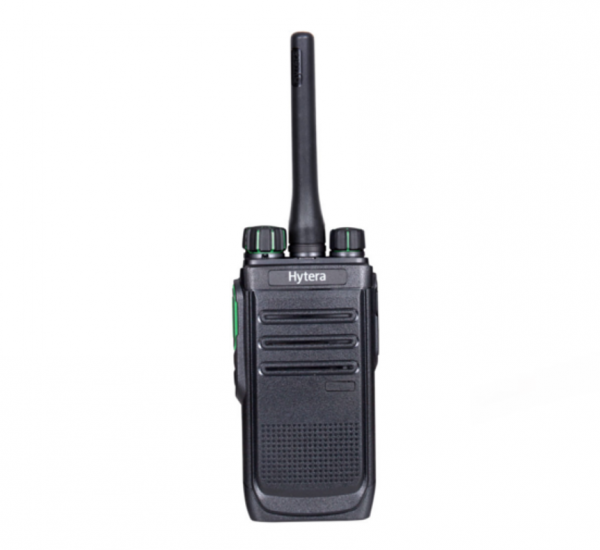

Hytera BD505 Digital Mobile Radio (DMR)

Hytera BD505 Digital Mobile Radio (DMR)

Description

The Hytera BD505 is a professional, compact, and cost-effective digital mobile radio (DMR), ideal for organizations looking to upgrade from analog to digital communication. As an entry-level DMR radio, the BD505 provides a reliable and affordable solution for teams that need clear voice communication and basic digital features without complexity.

Designed for ease of use and efficient performance, the BD505 is suitable for small to medium-sized businesses, security teams, and industrial operations, offering a smooth transition to digital networks while maintaining compatibility with analog systems.

Features

Rugged & Reliable	The BD505 is designed and tested to meet MIL-STD-810 C, D, E, F and G standards, including resistance to temperature shock, vibration, high and low temperatures, and humidity. Its IP54-rated design provides protection against dust and water for reliable operation in demanding environments. Based on TDMA technology, the radio offers up to 22 hours of operating time in digital mode.
Clear Communication	Digital encoding and correction technology help deliver clear voice communication with reduced background noise, even over longer distances, providing improved audio quality and intelligibility.
Channel Announcement	Voice channel announcement enables users to switch channels quickly and accurately, even in challenging working conditions.

Specifications

General Specifications
Frequency Range	UHF: 400–470 MHz VHF: 146–174 MHz
Channel Capacity	48 channels
Zone Capacity	3 zones
Channel Spacing	25 / 12.5 kHz
Operating Voltage	3.7 V
Battery	1500 mAh Li-Ion / 2000 mAh Li-Ion
Battery Service Life (5/5/90)	Analogue: 12/16 hours (1500 mAh) Digital: 16/22 hours (2000 mAh)
Frequency Stability	±0.5 ppm
Antenna Impedance	50 Ω
Dimensions (H × W × D)	108 × 54 × 29 mm
Weight	8 oz. (with AN0435W09 and BL1506)
Transmitter
RF Power Output	VHF High Power: 5 W VHF Low Power: 1 W UHF High Power: 4 W UHF Low Power: 1 W
FM Modulation	11K0F3E @ 12.5 kHz 16K0F3E @ 25 kHz
Conducted/Radiated Emission	-36 dBm < 1 GHz -30 dBm > 1 GHz
Modulation Limiting	±2.5 kHz at 12.5 kHz ±5.0 kHz at 25 kHz
FM Hum & Noise	40 dB at 12.5 kHz 45 dB at 25 kHz
Audio Response	+1 to -3 dB
Audio Distortion	≤ 3%
Receiver
Sensitivity (Digital)	0.22 μV / BER 5%
Sensitivity	0.22 μV (Typical) (12 dB SINAD) 0.4 μV (20 dB SINAD)
Adjacent Channel Selectivity (TIA-603)	60 dB @ 12.5 kHz 70 dB @ 25 kHz
Hum & Noise	40 dB @ 12.5 kHz 45 dB @ 25 kHz
Rated Audio Power Output	0.5 W
Environmental Specifications
Operating Temperature	-30°C to +60°C
Storage Temperature	-40°C to +85°C
ESD	IEC 61000-4-2 (Level 4): ±8 kV contact / ±15 kV air
Dustproof & Waterproof	IP54
Humidity	MIL-STD-810 C/D/E/F/G
Shock & Vibration	MIL-STD-810 C/D/E/F/G
