Kenwood NX-3000 Portable series

Home>Two-Way Radios>Kenwood NX-3000 Portable series
Kenwood NX3000

Description

The Kenwood NX-3000 Series is a premium, mid-tier line of professional digital portable two-way radios designed to offer high-performance multi-protocol flexibility. Built to support both NXDN and DMR digital protocols out of the box (as well as legacy analog), this series allows enterprise fleets, security teams, and utilities to choose their preferred digital standard without changing hardware platforms.

The NX-3000 series is split into two primary band designations:
• NX-3200: Covering the VHF band (136–174 MHz).
• NX-3300: Covering the UHF band (400–470 MHz / 450–520 MHz).

Features

PHYSICAL INTERFACE OPTIONS
Standard Non-Display Model Streamlined, non-display and non-keypad configuration designed for straightforward push-to-talk communication. Features a top-mounted 16-position rotary channel selector for convenient operation in demanding working environments.
LCD Display & 4-Key Model Features a 4-line, 14-character alphanumeric LCD display with four front-panel function keys. Provides convenient access to channel information, radio settings and programmable functions, with support for up to 512 channels.

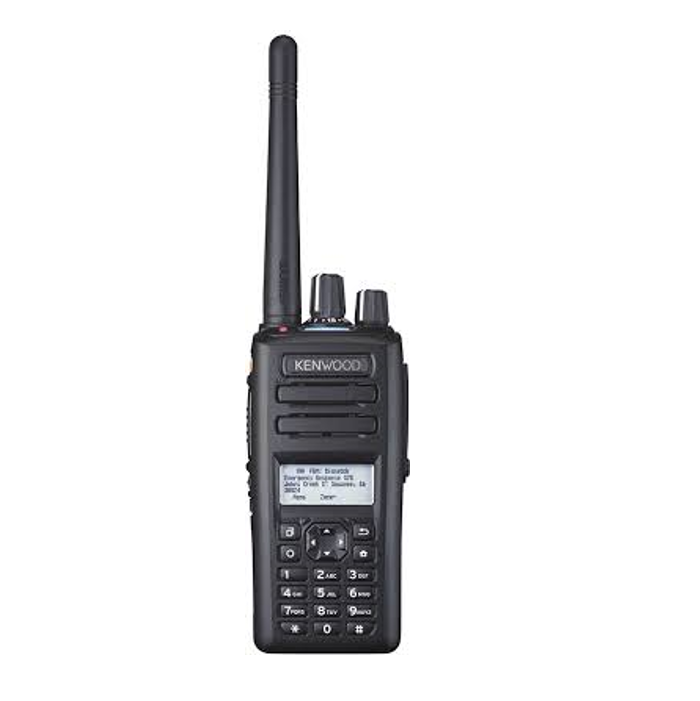

Full Keypad & LCD Model Combines an alphanumeric LCD display with a full physical DTMF keypad for direct dialling, supported messaging functions, menu navigation and convenient access to advanced radio features.
ADVANCED ENGINEERING & OPERATIONAL FEATURES
Multi-Protocol Compatibility Supports NXDN digital, DMR digital and conventional analogue communication modes. Compatible mixed-mode operation allows the radio to recognise supported incoming signal types, providing flexibility for organisations operating mixed radio fleets or transitioning to digital systems.
Advanced Noise Cancellation Digital signal processing and noise reduction technology help minimise unwanted background noise, improving voice clarity in industrial, transport and other noisy operating environments. Noise reduction performance depends on operating conditions and configuration.
Integrated GPS & Bluetooth Supports GPS location tracking for compatible dispatch and personnel management applications, together with Bluetooth connectivity for supported wireless audio accessories and data functions. Availability depends on the specific model and configuration.
Intelligent Safety Monitoring Supports Man Down detection, Lone Worker monitoring and motion-related alerts in compatible configurations. These features help improve personnel safety by triggering emergency notifications when predefined conditions are detected.
Remote Programming & Encryption Management Supports compatible remote radio management functions, including over-the-air programming and encryption key management where available. These capabilities can simplify fleet administration and help protect sensitive communications.
IP67 Environmental Protection Rugged IP67-rated construction provides protection against dust ingress and temporary immersion in water up to 1 metre deep for 30 minutes under specified test conditions. Suitable for demanding outdoor and industrial applications.

Specifications

TECHNICAL SPECIFICATIONS
Specification NX-3200 Series (VHF) NX-3300 Series (UHF)
Frequency Range 136–174 MHz 400–470 MHz / 450–520 MHz
Digital Protocols NXDN Conventional & Type-D Trunking
DMR Tier II Conventional
Analogue		 NXDN Conventional & Type-D Trunking
DMR Tier II Conventional
Analogue
Channel Capacity Non-display: 16 channels
LCD models: 512 channels / 128 zones		 Non-display: 16 channels
LCD models: 512 channels / 128 zones
RF Transmit Power 1 W / 5 W selectable 1 W / 5 W selectable
Channel Spacing Digital: 6.25 / 12.5 kHz
Analogue: 12.5 / 25 kHz		 Digital: 6.25 / 12.5 kHz
Analogue: 12.5 / 25 kHz
Environmental Protection IP67 – dust-tight and water immersion protection IP67 – dust-tight and water immersion protection
Military Standards MIL-STD-810 C, D, E, F and G MIL-STD-810 C, D, E, F and G
Audio Output Power Up to 1 W internal speaker Up to 1 W internal speaker
Standard Battery KNB-57L 2000 mAh rechargeable lithium-ion battery KNB-57L 2000 mAh rechargeable lithium-ion battery
Accessory Connector Kenwood multi-pin side accessory connector Kenwood multi-pin side accessory connector
Dimensions (W × H × D) 56 × 119.6 × 36.4 mm
With standard battery		 56 × 119.6 × 36.4 mm
With standard battery
Device Weight Approximately 340 g, including battery and antenna Approximately 340 g, including battery and antenna

Brochure

NX-3000_portable_E_UK_0617_LR
