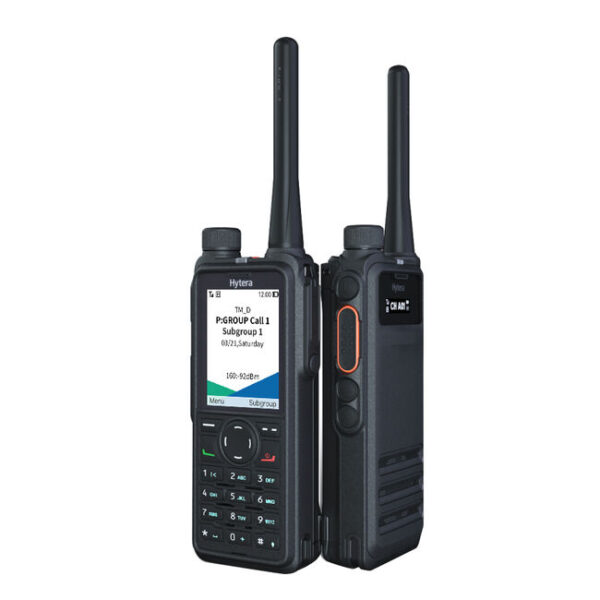

Hytera HP785 Digital Mobile Radio (DMR)

Description

The Hytera HP785 is a high-tier digital mobile radio (DMR) engineered for demanding professional communication environments. Renowned for its crystal-clear audio, rugged construction, and feature-rich functionality, the HP785 is a reliable choice for teams requiring efficient and dependable communication in security, industrial, and field operations.

An upgrade from previous professional Hytera models, the HP785 includes a full keypad and a bright color display, allowing for intuitive operation, quick access to features, and enhanced user interaction. Its durable design ensures consistent performance in challenging conditions.

Key Features:

  • High-tier DMR radio for professional communication

  • Clear, loud audio for noisy environments

  • Rugged and durable construction

  • Full keypad and color display for easy operation

  • Advanced features for efficient workflow and team coordination

  • Ideal for security, industrial, and field-based operations

Perfect for: professionals who need reliable, feature-rich, and durable communication devices for mission-critical tasks.

Why Choose the Hytera HP785:
The HP785 combines advanced digital radio technology, rugged design, and user-friendly operation, providing a high-performance solution for teams that rely on effective communication in demanding environments.

Features

THINNER AND LIGHTER

An optimized mechanical design and a compact lithium polymer battery which fits discreetly into the HP785’s design makes the radio only 29.5mm thick and 310g in weight.

ENHANCED COVERAGE

Increased receiver sensitivity extends the coverage range and improves audio quality in weak signal areas

BIG DISPLAY AND NEW UI

The 2.4-inch colour display provides a brand new intuitive UI to improve the user experience. A Quick Access Menu that allows users to access frequently used menus more easily.Messages are listed in conversation for quick reading and review. User profiles can be configured to set audio parameters for different operating environments

LOUDER AND CLEARER AUDIO

The HP785 has louder and clearer audio though an optimized forward facing speaker and AI-based noise cancellation that decreases the unwanted background noise and howling and improves communication efficiency.

LONGER BATTERY LIFE

The latest in proven lithium polymer technology is used in the battery used with the HP785. The battery is lighter and smaller than ever before, yet still delivers 24 hours of battery life (5/5/90) to provide radio operation for your entire shift.

HIGHER LEVEL OF RUGGEDNESS

HP785 is designed as per the MIL-STD-810G. It is IP68 rated, impervious to water jets and submersible to a depth of 2 meters for 4 hours, and also resilient to 2-meter drops onto concrete. No matter where the mission drives the officer, the HP785 is the partner to count on, because it can stand up to the toughest environment.

Specifications

General

Frequency range
UHF: 350-470 MHz
VHF: 136-174 MHz
Channels & zones
Channel capacity: 1024
Zone capacity: 64
Channels per zone: 256
Channel spacing
Analogue: 12.5kHz/20kHz/25kHz
Digital: 12.5kHz
Digital Protocol
ETSI-TS102 361-1,-2,-3,-4
Operating voltage
7.7V
Battery
2400 mAh Li-polymer
Battery life (5-5-90 duty cycle)
GNSS disabled: 24 hours
GNSS enabled: 20 hours
Frequency stability
±0.5 ppm
Antenna impedance
50 Ω
Dimensions H×W×D
132 mm x 55 mm x 29.5 mm
Weight
310g
Display
2.4 inch LCD, 320×240 pixels, 262000 colors
Bluetooth
BT V5.0 BLE+EDR
Digital protocol
ETSI-TS102 361-1,-2,-3,-4

Receiver

Sensitivity
Analogue: 0.18µV (12dB SINAD)
Analogue: 0.16µV (12dB SINAD) (typical)
Digital: 0.18µV / BER 5%
Selectivity
TIA-603: 60dB @12.5kHz / 70dB @20/25kHz
ETSI: 60 dB @12.5kHz / 70dB @20/25kHz
Intermodulation
TIA-603: 70 dB
ETSI: 65 dB
Spurious response rejection
TIA-603: 70 dB
ETSI: 70 dB
Blocking
TIA-603: 80 dB
ETSI: 84 dB
Hum and noise
40 dB @12.5kHz
43 dB @20kHz
45 dB @25kHz
Rated audio power output
0.5 W
Rated audio distortion
<3%
Audio response
+1 to -3 dB
Conducted spurious emission
< -57 dBm

Transmitter

RF power output
UHF: 1W / 4W
VHF: 1W / 5W
FM modulation
11K0F3E @12.5kHz
14K0F3E @20kHz
16K0F3E @25kHz
4FSK digital modulation
12.5kHz data only: 7K60FXD
12.5kHz data and voice: 7K60FXW
Conducted/radiated emission
-36dBm @<1GHz; -30dBm @>1GHz
Modulation limiting
±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz
FM hum and noise
40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz
Adjacent channel power
60dB @12.5kHz; 70dB @20/25kHz
Audio response
+1 to -3 dB
Audio distortion
<3%
Digital vocoder type
AMBE+2™

Environmental

Operating temperature
-30°C to +60°C (radio only / battery: -20 ℃)
Storage temperature
-40°C to +85°C
ESD
IEC 61000-4-2 (level 4)
±8 kV (contact)
±15 kV (air)
Ingress protection
IEC60529 – IP66
IEC60529 – IP67
IEC60529 – IP68
Drop, shock and vibration
Per MIL-STD-810G standard
Humidity
Per MIL-STD-810G standard

Location Service

GNSS
GPS, GPS+GLONASS, GPS+BDS
TTFF (time to first fix) cold start
< 1 minute
TTFF (time to first fix) hot start
< 10 seconds
Horizontal accuracy
< 5 meters

Brochure

Hytera-HP785-Series-Brochure

Hytera HP785 Digital Mobile Radio (DMR) from Diotron Communications
