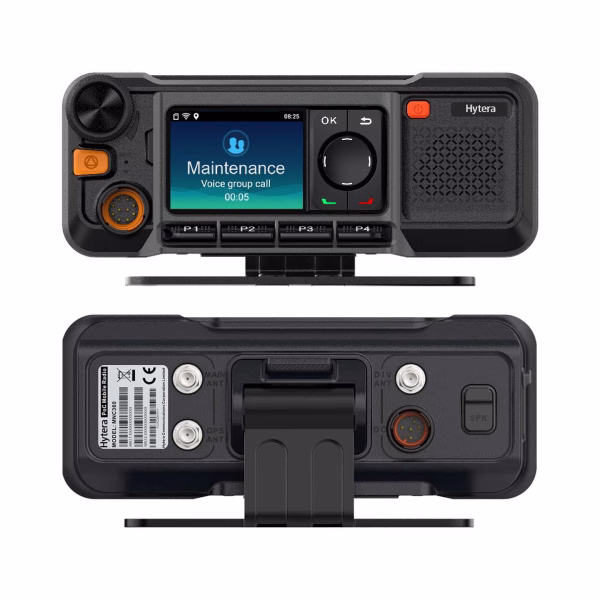

The Hytera MNC360 is a professional Android-based Push-to-Talk over Cellular (PoC) mobile radio specifically engineered for in-vehicle or desktop communication. Operating on public 3G, 4G, and LTE networks, it delivers nationwide or global communication without requiring expensive, traditional repeater infrastructure. It is widely deployed in logistics, transport, public safety, and dispatch fleets.
| Physical & Mechanical | |
| Dimensions (H × W × D) | 170 × 66.5 × 39.3 mm |
| Weight | 330 g |
| Display | 2.0-inch colour TFT display (non-touch), designed for straightforward operation using physical controls. |
| Controls | 4 × programmable keys, large tactile PTT button on the palm microphone and a heavy-duty volume/channel control knob. |
| System Hardware | |
| Operating System | Android-based optimised platform designed for stable and reliable operation. |
| Memory | 1 GB RAM + 8 GB ROM |
| SIM Card Slots | Dual Micro SIM card slots, allowing compatible network providers to be used for greater connectivity flexibility and backup coverage. |
| MicroSD Card Slot | 1 × MicroSD card slot supporting cards up to 32 GB. |
| Power & Electrical | |
| Operating Voltage | 9–36 V DC wide-voltage input, suitable for installation in a range of vehicles including cars, vans, heavy trucks and compatible industrial machinery. |
| Internal LTE Antennas | 2 × built-in internal LTE antennas. |
| External Antenna Ports | Dual external SMA antenna ports supporting compatible external antennas, including vehicle-mounted high-gain antenna installations. |
| Audio & Transceiver Performance | |
| Audio Power Output | Integrated 4 W internal speaker, with support for up to 8 W maximum output via the external speaker connection. |
| Microphone | Heavy-duty palm microphone with a robust aviation-style round connector. |
| Environmental & Durability | |
| Dust & Water Protection | IP54-rated for protection against dust ingress and water splashes. |
| Environmental Standard | MIL-STD-810H compliant, designed to withstand demanding environmental conditions including shock, vibration and temperature extremes. |
| Operating Temperature | -20°C to +60°C |
| High-Acoustic Audio & Noise Cancellation | Advanced noise reduction, distortion suppression and acoustic echo cancellation technologies help deliver clear, intelligible audio in demanding vehicle environments. The powerful front-facing speaker helps communications remain audible over engine noise, sirens and road noise. |
| Dual External LTE Antenna Ports | Dual external LTE antenna connections allow compatible vehicle-mounted antennas to be installed outside the vehicle cabin, helping provide more stable cellular connectivity in areas with challenging or weaker network coverage. |
| Driver-Friendly Control Design | Large, well-spaced physical keys and an industrial rotary control provide straightforward operation and easy access to frequently used radio functions, making the unit well suited to vehicle-based communication. |
| Over-the-Air (OTA) Management | Supports remote device management over cellular networks, allowing authorised administrators to manage compatible devices, update configurations and maintain radio fleets without requiring every unit to be physically returned for routine programming. |
| Positioning & Fleet Management | Supports GPS, GLONASS and BDS satellite positioning for accurate location information. When integrated with a compatible dispatch platform, positioning data can support real-time vehicle tracking, routing, geofencing and fleet management. |
| Emergency & Safety Functions | A dedicated emergency button provides rapid access to emergency signalling. When configured with a compatible communication and dispatch system, emergency alerts can be prioritised and accompanied by location information to assist with a faster response. |
