Inrico TM-9 Mobile Radio

Home>Two-Way Radios>Inrico>Inrico TM-9 Mobile Radio

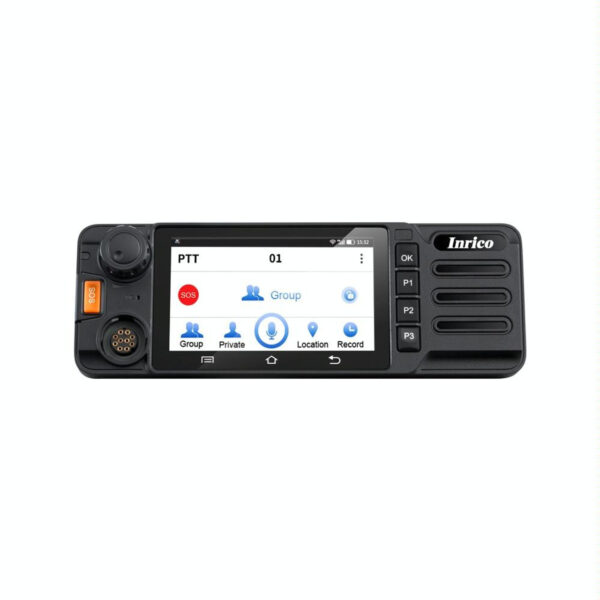

Inrico TM-9 POC mobile
Inrico TM-9 Mobile Radio - Image 2

Description

The Inrico TM-9 Smart PoC Mobile Radio is a premium, high-performance, vehicle-mounted, or desktop-mounted Push-to-Talk over Cellular (PoC) transceiver. Running on a reliable Android 7.1 platform and powered by public 3G/4G LTE and Wi-Fi networks, it skips the distance limitations of standard radio frequencies to provide global dispatch range. It is widely deployed across transport fleets, heavy logistics providers, construction yards, and amateur radio operators using platforms like Zello or the International Radio Network (IRN)

Features

Professional DB25 Hardware Interface Rear-mounted DB25 interface provides connectivity for compatible external hardware and auxiliary equipment, allowing the terminal to be integrated into customised vehicle and fleet communication systems.
External Camera Integration Supports integration with compatible external camera equipment for applications such as vehicle monitoring, video communication and supported dispatch-platform workflows, depending on system configuration.
Intelligent Microphone Switching When a compatible external palm microphone is connected, the terminal can manage the active microphone source to help minimise unwanted feedback and improve voice clarity within vehicle environments.
External Audio Accessory Support The rugged front-mounted microphone interface supports compatible external palm microphones and audio accessories, providing flexible communication options for fixed and mobile installations.
Dedicated SOS Emergency Key A prominent physical SOS key provides rapid access to configured emergency functions. Depending on the installed Push-to-Talk application and dispatch platform, activation can generate an emergency alert and provide associated location information to authorised control-room personnel.
GPS Emergency Location Support Integrated GPS and GLONASS positioning can provide location information to compatible dispatch and tracking platforms, supporting fleet monitoring and configured emergency-response workflows.
Over-the-Air Management Compatible management platforms can support remote configuration and software management over broadband networks, reducing the need to physically return installed terminals for routine supported updates.
Wi-Fi Hotspot Capability The terminal can support compatible Wi-Fi hotspot functionality, allowing its cellular data connection to be shared with authorised devices such as tablets and other smart terminals when appropriately configured.

Specifications

System & Processing
Operating System Android 7.1 operating system supporting compatible Push-to-Talk and business applications.
Processor / Chipset MediaTek MT6739 mobile processing platform.
Memory 1 GB RAM + 8 GB internal storage.
Storage Expansion Dedicated MicroSD card slot supporting compatible memory cards up to 128 GB.
Interface & Controls
Display 4.0-inch touchscreen with 360 × 640 pixel resolution, providing a clear interface for applications, menus and compatible mapping functions.
Power / Volume Control Combined rotary power and volume control for convenient operation in vehicle installations.
Emergency Control Dedicated hardware SOS emergency button for rapid access to compatible emergency functions.
Navigation Controls On-screen Back and Home navigation controls provide convenient access to applications and system functions.
LED Status Indicator Multi-colour LED provides visual operating-status information. Indicator behaviour can vary according to the installed application and configuration.
Electrical & Connectivity
Operating Voltage 12–24 V DC input suitable for compatible vehicle power systems.
SIM Configuration Dual SIM card slots supporting compatible cellular network configurations.
Wi-Fi Dual-band Wi-Fi supporting 2.4 GHz and 5 GHz wireless networks.
Bluetooth Integrated Bluetooth connectivity for compatible wireless accessories and peripherals.
Satellite Positioning Integrated GPS and GLONASS positioning for compatible navigation, fleet tracking and dispatch applications.
External Antenna Connections Separate rear-mounted connections support external GPS and 4G LTE antennas, providing flexible installation options for vehicle applications.
Audio, Ports & Mechanical
Internal Speaker High-output 5 W internal loudspeaker designed to provide clear and intelligible audio in vehicles and other noisy working environments.
DB25 Interface Rear-mounted DB25 interface provides connectivity for supported external hardware and auxiliary equipment, including compatible vehicle integration accessories.
Palm Microphone Interface Rugged front-mounted circular interface provides a secure connection for compatible palm microphones and communication accessories.
Dimensions (L × W × H) 195 × 67 × 65 mm.
Weight Approximately 550 g.
Ingress Protection IP54 rated for protection against limited dust ingress and water splashes under specified test conditions.

Brochure

Inrico TM-9 brochure
