SFE SE368

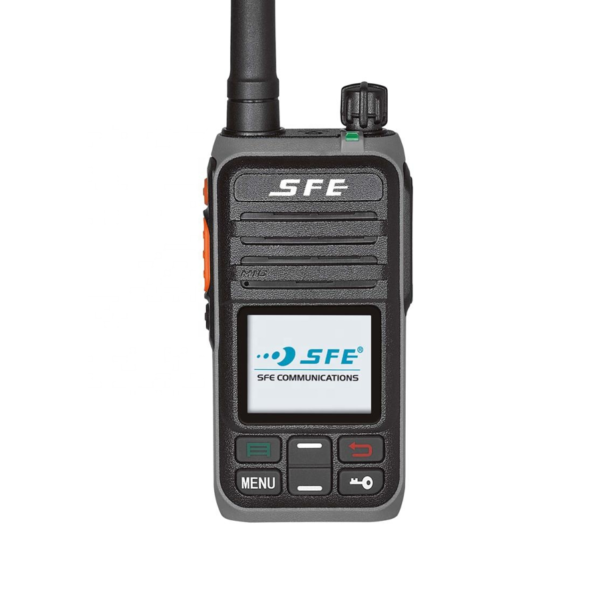

SFE SE368 POC PTT Radio LTE 4G Sim Card Walkie Talkie

Features

  • Support LTE FDD 4G/WCDMA 3G/GSM 2G Network
  • 1.8 Inch Colorful Display Panel
  • LCD Backlight & Brightness Selective
  • Alphanumeric LCD Display Mode
  • GPS Function Optional(Longtitude & Latitude Location)
  • Audio Recording Function
  • With Functional Dispatching System
  • Compact & Heavy-duty Design
  • All Call, Group Call & Individual Call
  • Superb Clear and Powerful Audio Output
  • Huge Battery Capacity 5200mAH Li-Ion

Specifications

SFE SE368 POC PTT Radio LTE 4G Sim Card Walkie Talkie
Frequency Range LTE:B1/B3/B7/B8/B20 etc.Optional

WCDMA: 850M/900M/2100MHz etc. Optional

GSM/GPRS: 900MHz/1800MHz etc. Optional

GPS:1.57542GHz
Network System  LTE FDD/WCDMA/GSM/GPRS
Working Mode Simplex
Operating Voltage 3.7V
Battery Capacity 5200mAh(Li-Ion)
Battery Life About 18-36Hours
Working Current Approx. 250mA @ UTMS 2100MHz/900MHz

Approx. 220mA @ GSM 900MHz



0.8A(Peak Current)
Operating Temperature (-)20 – (+)60°C
Store Temperature (-)30 – (+)80°C
RX Sensitivity WCDMA 900MHz: ≤-108 dBm;

WCDMA 2100MHz: ≤-109 dBm;

GSM 900MHz/1800MHz: ≤-106 dBm;
Dimension 53*28*116mm
Weight 220g
Occupied Bandwidth ≤1.48MHz
RF Power ≤30dBm
Frequency Error ±300Hz
Audio Output 500mW
Antenna Impedence 50ohm

Brochure

SFE SE368 Brochure
